Endpoint Groups

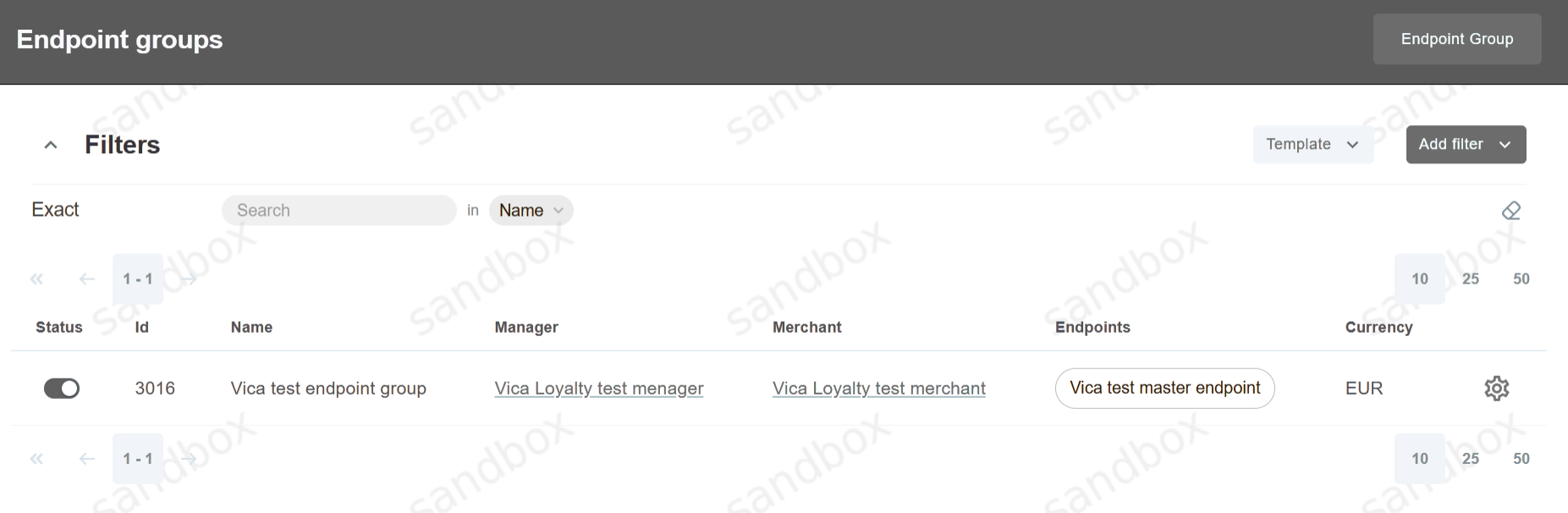

Endpoint group is an entity that combines several Endpoints and Master Endpoints in different currencies. The Endpoint Group simplifies the integration of a Connecting Party business to Payer-Gateway Payment Gateway when working with various currencies. This screen allows to view configured Endpoint Groups.

pic106 merchant faq

Here is shown the structure and logic of Endpoint Group:

title Options for multi-currency processing integration package "Integration to Endpoint Group" { class "layoutHelper1" #ffe6cc;line:black;line.dotted class "Project\n currency A" #dae8fc;line:black;line.dotted class "Project\n currency B" #dae8fc;line:black;line.dotted class "Endpoint\n currency A" #ffe6cc;line:black;line.dotted class "Endpoint\n currency B" #ffe6cc;line:black;line.dotted class "Endpoint\nGroup" #ffe6cc;line:black;line.dotted } package "Integration to multiple Endpoints" { class "layoutHelper2\n" #ffe6cc;line:black;line.dotted class "Project\n currency C" #dae8fc;line:black;line.dotted class "Project\n currency D" #dae8fc;line:black;line.dotted class "Endpoint\n currency C" #ffe6cc;line:black;line.dotted class "Endpoint\n currency D" #ffe6cc;line:black;line.dotted } class "layoutHelper3" #ffe6cc;line:black;line.dotted class "Connecting Party\n (Merchant)" #e1d5e7;line:black;line.dotted "Connecting Party\n (Merchant)" -left-> "Endpoint\nGroup" "Connecting Party\n (Merchant)" -down-> "layoutHelper3" "Connecting Party\n (Merchant)" -down-> "Endpoint\n currency C" "Connecting Party\n (Merchant)" -down-> "Endpoint\n currency D" "Endpoint\nGroup" -down- "Endpoint\n currency A" "Endpoint\nGroup" -down- "Endpoint\n currency B" "Endpoint\n currency C" -down- "Project\n currency C" "Endpoint\n currency D" -down- "Project\n currency D" "Endpoint\n currency A" -down- "Project\n currency A" "Endpoint\n currency B" -down- "Project\n currency B" "Connecting Party\n (Merchant)" -left[hidden]- "layoutHelper1" "Connecting Party\n (Merchant)" -right[hidden]- "layoutHelper2\n" "layoutHelper1" -[hidden]- "Endpoint\n currency A" "layoutHelper1" -[hidden]- "Endpoint\n currency B" "layoutHelper2\n" -[hidden]- "Endpoint\n currency C" "layoutHelper2\n" -[hidden]- "Endpoint\n currency D" hide members hide circle hide layoutHelper1 hide layoutHelper2\n hide layoutHelper3
